QHY16200A with FREE Custom Adapter
QHYCCD

QHY16200A with FREE Custom Adapter

HK$34,400.00
SKU:
QHY16200A-5x2
Availability:
In stock now. Ships in 1-2 working days
Weight:
4.00 KGS
Shipping:
Free Shipping
  • LRGB from bottom left close-wise
  • Optolong SHO narrowband filters
Adding to cart… The item has been added

Brand new 16MP APS-H mono CCD sensor co-developed by Onsemi and QHYCCD

QHY16200 A is designed with amateur astronomers in mind. The 16MP APS-H sensor is a product of close collaboration between QHYCCD and Onsemi (previously Kodak). This sensor KAF-16200 is 58% larger than an APS-C sensor such as the one in QHY8L and 240% larger than a 4/3 sensor in QHY9S-M.

KAF-16200 pixel size is 6µm x 6µm, slightly larger than QHY9S-M's 5.4µm. The peak quantum efficiency is 59% at 550nm and 48% at hydrogen alpha line. Readout noise is 9-10e- typically.

kaf-16200-qe.png kaf-16200-qe-colour.png

Highlights

  • 16MP APS-H Full Frame CCD (59% peak QE)
  • Built in 5 positions 2-inch filter wheel
  • Built in off-axis guider
  • Built in Optics window heater
  • Integrated USB hub with 3 ports
  • Integrated USB to RS232 ports x2

QHY A series

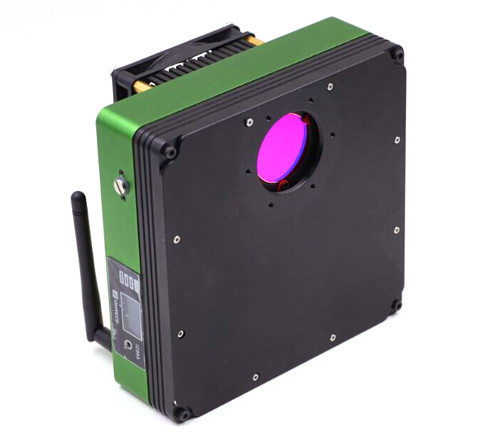

The A series cameras such as QHY16200A, QHY90A and QHY695A are integrated cameras whereas the A stands for ALL. It combines the camera body with built in filter wheel, on axis guider, USB hub and USB-RS232 converter to provide amateur astronomers a compact and simple user experience. The autoguiding camera could connect directly to the A series USB hub and only one USB cable to the computer is required.

QHY16200A has a built in 5 positions 2-inch filter wheel.


Gallery


Author: James Shimoji
L: 450s x 30; RGB: 300s x3
T: -30ºC

Calibration and batch composite in PixInsight.
No dark calibration.
Post Production: PixInsight & Photoshop CC 2014.

Telescope: Takahashi FSQ106ED 645RD (380mm f/3.6)
Mount: SkyWatcher EQ8
Guide Scope: Eyebell 400mm F5
Guide Camera: Starlight Express Superstar

Location: Gulliver Parking, Yamanashi, Japan (1130m above sea level)
Date: 10 Feb 2016 2100-0100 JST

Full resolution download

Sensor specifications
Sensor Onsemi KAF-16200 Full Frame CCD
Effecitve pixel count 16 Megapixels
Pixel size 6µm x 6µm
Peak quantum effiency 48% @ H-alpha, 59% @ 550nm
Full well capacity 41 ke-
Anti blooming gate -2000x of full well capacity
Microlenses on chip Yes
Effective pixel array size 4540[H] x 3630[V]
Chip size 27.0 mm x 21.6 mm
Backfocus 33.5-34mm (5 positions 2" filter wheel version)
To be announced (7 positions 2" filter wheel version)
Typical size APS-H
Thermal noise 0.04 e-/pixel/s @ -20 deg C

Electronic specification
Readout method Progressive Scan
Exposure Time 1ms - 10,000s
Shutter Butterfly mechanical shutter (uniform illumination)
Download speed TBA
Preview speed (4*4 binning) TBA
Readout noise 9-10 e- @ 1MPixels/s
Supported binning modes 1*1, 2*2, 4*4
System gain 0.7 e-/ADU
Analog-digital converter 16-bit with CDS and Pre-amp
Power consumption 8 W (0% cooling power)
   16.5 W (50% cooling power)
   27 W (100% cooling power)



Thermal specification

  • 2-stage TEC -40ºC below ambient
  • Airproof CCD chamber with removable silica tube socket
  • Built-in active cooling fan
  • Built-in optical window anti-dew heater

Interfaces

  • M54p0.75 to telescope
  • USB 2.0 x3 (2 host, 1 slave)
  • RS232 LEMO 3 pins port x2
!
