QHY 23 with FREE Custom Adapter (Free Shipping)
Discontinued. Please see QHY533M.
- SKU:
- QHY23
- Availability:
- Discontinued. Please see QHY533M.
- Weight:
- 2.88 KGS
Discontinued. Please see QHY533M.
Description
QHY 23 is a 9.2 megapixels monochrome CCD camera with 79% peak QE, one of the highest among consumer grade astronomical CCD cameras. Cools 45ºC below ambient which further reduces the negligible thermal noise Sony sensors typically posses. Readout noise is only 5e, the lowest among QHYCCD cameras. Combined with high QE and low readout and thermal noise, QHY 23 is great for all deep sky astronomical imaging including narrowband imaging.
With air-proof CCD chamber filled with argon gas and built in optical window heater, moisture are no longer a concern for astrophotographers imaging at humid regions.
A cable fixer is also included for robust cables connection.
Colour or monochrome version are available at the same price.
Includes:
- QHY 23 x1
- M42 to 2" nosepiece adapter x1
- DC 201 with 9 pin power cable x1
- Car cigarrate power cable x1
- 1.8m Belkin USB cable x1
- 1.5m ST-4 guiding cable x1
- Metalic cable binder x1
- Silica desiccant tube with gels x1
- All shipped in pelican case
Free shipping applies. More details here.
| Sensor | Sony ICX814 |
| Effecitve pixel count | 9.2 Megapixels |
| Pixel size | 3.69µm x 3.69µm |
| Peak quantum effiency | >60% @ H-alpha, 70% @ 450nm |
| Full well capacity | 15k e- to 20 ke- |
| Anti blooming gate | -105dB |
| Microlenses on chip | Yes |
| Total pixel array size | 3468[H] x 2728[V] |
| Effective pixel array size | 3388[H] x 2712[V] |
| Chip size | 10.7 mm x 9.2 mm |
| Effective area | 12.5 mm x 10.0 mm (approx.) |
| Typical size | 1 inch |
| Readout method | Progressive Scan |
| Shutter | Global electronic shutter |
| Download speed | 1.25 MPixels/s |
| Preview speed (4*4 binning) | 4.4 MPixels/s |
| Readout noise | 5 e- @ 1.25 MPixels/s |
| Supported binning modes | 1*1, 2*2, 4*4 |
| System gain | 0.25 - 0.30 e-/ADU |
| Analog-digital converter | 16-bit with CDS and Pre-amp |
| Power consumption | 3.5 W (0% cooling power) |
| 12.8 W (50% cooling power) | |
| 25.8 W (100% cooling power) |
Thermal specification
- 2-stage TEC -45ºC below ambient
- Airproof CCD chamber with removable silica tube socket
- Built-in active cooling fan
- Built-in optical window anti-dew heater
Interfaces
- C mount for connecting to telescope
- USB 2.0
- 4 pin QHYCCD filter wheel communication port
QHYCCD

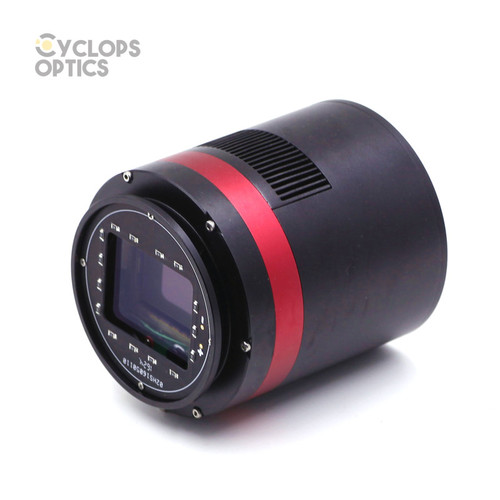

QHY247C COLDMOS with Free Custom OR BLADE Adapter + Free Shipping + Free LensPen
