QHY 22 with FREE Custom Adapter

Discontinued. Please see QHY533M.

SKU:
QHY22
Availability:
Discontinued. Please see QHY533M.
Weight:
2.70 KGS
Selected Mono or Colour Sensor is
  • LRGB from bottom left close-wise
  • LRGB from bottom left close-wise
  • Optolong SHO narrowband filters
  • Optolong SHO narrowband filters
  • Optolong SHO narrowband filters
  • LRGB from bottom left close-wise
  • Optolong SHO narrowband filters
  • Optolong SHO narrowband filters

Discontinued. Please see QHY533M.

Description

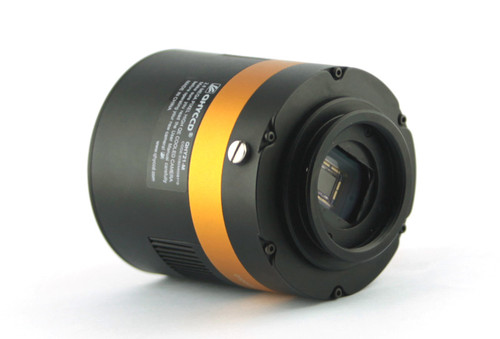

QHY 22 is a 6.1 megapixels monochrome CCD camera with 79% peak QE, one of the highest among consumer grade astronomical CCD cameras. Cools 45ºC below ambient which further reduces the negligible thermal noise Sony sensors typically posses. Readout noise is only 5e, the lowest among QHYCCD cameras. Combined with high QE and low readout noise (5e-) and thermal noise, QHY 22 is great for all deep sky astronomical imaging including narrowband imaging.

With air-proof CCD chamber filled with argon gas and built in optical window heater, moisture are no longer a concern for astrophotographers imaging at humid regions.

A cable fixer is also included for robust cables connection.

Colour or monochrome version are available at the same price.

Includes:

  • QHY 22 camera x1
  • M42 to 2" nosepiece adapter x1
  • DC 201 with 9 pin power cable x1
  • Car cigarrate power cable x1
  • 1.8m Belkin USB cable x1
  • 1.5m ST-4 guiding cable x1
  • Cable binder x1
  • Silica desiccant tube with gels x1
  • Electronic dessicant x1
  • All shipped in pelican case
Free shipping applies. For details, please check out our free shipping details.


Sensor specifications
Sensor Sony ICX694
Effecitve pixel count 6.1 Megapixels
Pixel size 4.54µm x 4.54µm
Peak quantum effiency 79% @ 550nm, 60% @ H-alpha, 70% @ 450nm
Full well capacity 15k e- to 20 ke-
Anti blooming gate -105dB
Microlenses on chip Yes
Total pixel array size 2838[H] x 2224[V]
Effective pixel array size 2758[H] x 2208[V]
Chip size 14.6 mm x 12.8 mm
Effective area 12.5 mm x 10.0 mm (approx.)
Typical size 1 inch
Back Focus Distance 17 mm

Electronic specification
Readout method Progressive Scan
Shutter Global electronic shutter
Download speed 1.25 MPixels/s
Preview speed (4*4 binning) 4.4 MPixels/s
Readout noise 5 e- @ 1.25 MPixels/s
Supported binning modes 1*1, 2*2, 4*4
System gain 0.25 - 0.30 e-/ADU
Analog-digital converter 16-bit with CDS and Pre-amp
Power consumption 3.5 W (0% cooling power)
   12.8 W (50% cooling power)
   25.8 W (100% cooling power)



Thermal specification

  • 2-stage TEC -45ºC below ambient
  • Airproof CCD chamber with removable silica tube socket
  • Built-in active cooling fan
  • Built-in optical window anti-dew heater

Interfaces

  • C mount for connecting to telescope
  • USB 2.0
  • 4 pin QHYCCD filter wheel communication port
!
