QHY183M — 20MP Back-side Illuminated Monochrome Cooled Camera

• Backside-illuminated high 84% QE CMOS sensor
• 20 megapixels
• 1e- readout noise
• Cooled CMOS camera
• USB3.0
• 4K UHD video capability

QHY183M employs Sony Exmor IMX183 CMOS monochrome sensor which carries 20 megapixels on a 1-inch chip. As a member of the QHYCCD COLDMOS series, QHY183M has the capability to cool 40ºC below ambient, rendering a clean and quiet background for long exposure imaging. The optics window is heated with smart circuitry to prevent condensation from forming during cooling.

The QHY183M comes standard with USB3.0 interface providing a blazingly fast download speed. A built-in 4 pins filter wheel connector allows you to use QHYCCD filter wheel directly without extra connection needed. A 6 pins guiding port is also provided shall you want to use this as an autoguider, particularly for long focal length imaging scope OAG setup.

QHY's advanced amp-glow suppression technology is implemented in QHY183M to provide a clean background for long exposure astrophotography, an essential feature for any users planning to do deep sky imaging.

Includes

• QHY183M x1
• M42 to 1.25" Adapter x1
• 1.8m USB3 cable x1
• 1.5m ST4 autoguiding cable x1
• 3.0m DC 2.1mm power cable with secure lock x1
• 110-240VAC to 12VDC 6A Power Adapter x1
• Choice of power plug of designated country x1

* Eligible for free shipping

Technical Specifications

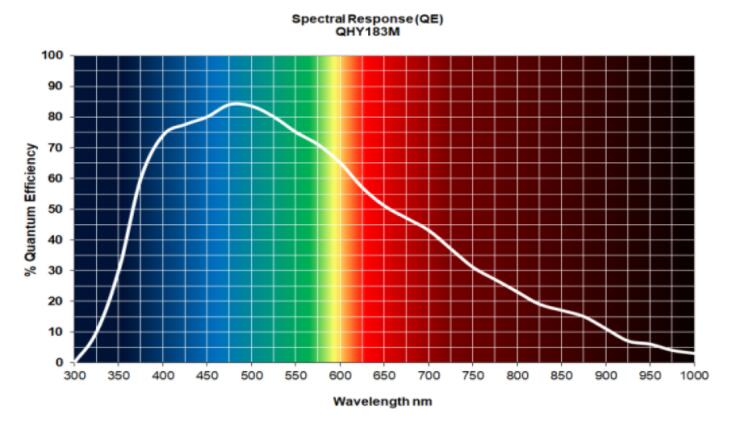

QHY183M Quantum Efficiency

Mechanical Drawing

Back-focus distance: 17mm

Downloads

Manual

QHY183C Manual v1.1

Drivers & Softwares

System Driver (2016/09/14) (Windows)

ASCOM driver (2016/10/18) (Windows)

SharpCAP (Default capture software for QHY183C)

Update for SharpCAP v2.8 & newer (use for updating QHYSDK in SharpCAP if errors occur)
