QHY5-III-568C Colour + Free Shipping + Free LensPen

QHY5-III-568C accepting order & shipping now!

Other Performance Highlights

• 6.46mm diagonal (Type 1/2.8)
• 2.9um pixel size
• Back Illuminated STARVIS
• 2.07MP (1920x1080)
• Max frame rate in 1080p of 120fps
• 10/12 bit ADC

QHY5-III Series Standard Features

• QHYCCD proprietary noise reduction technology
• Amp-glow suppression technology
• Free of vertical or horizontal banding
• State of the art Sony CMOS sensor
• USB3 high speed interface
• 5 pin LEMO aerospace grade guiding port (ST-4 compatible)
• Grooved heat sink for passive cooling
• Standard 1.25" barrel design

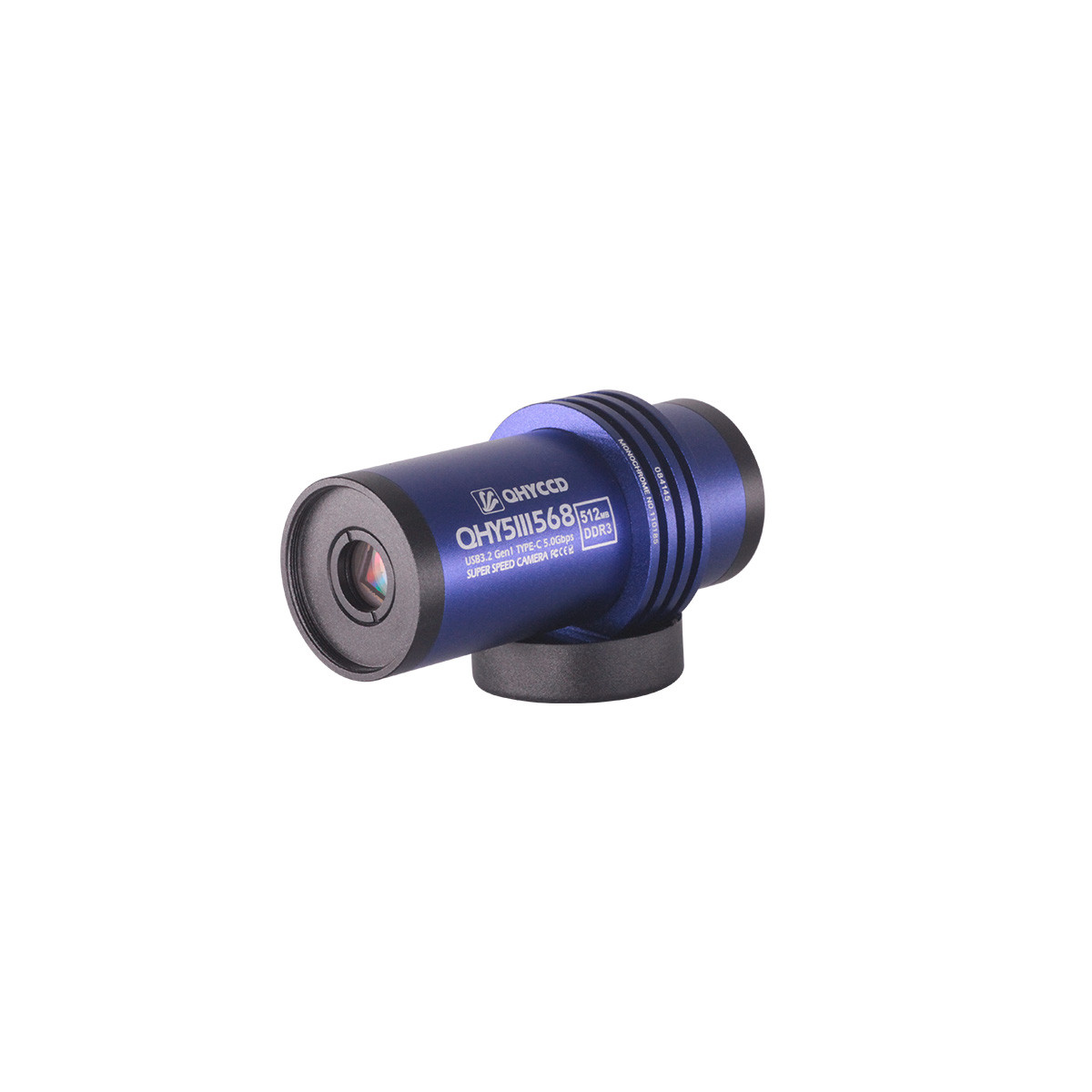

QHY5-III is a third generation QHYCCD USB3.0 camera utilising state of the art CMOS sensor with sophisticated thermal design in a compact form. The well acclaimed 1.25" eyepiece barrel design is retained and with grooved heatsink to enhance passive cooling.

Apart from the state of the art sensor, the QHY5-III is equipped with aerospace grade guiding port, i.e. the 5 pin LEMO port which provides highly reliable connection. This is a feature only available on premium camera where manufacturers really care about its customers.

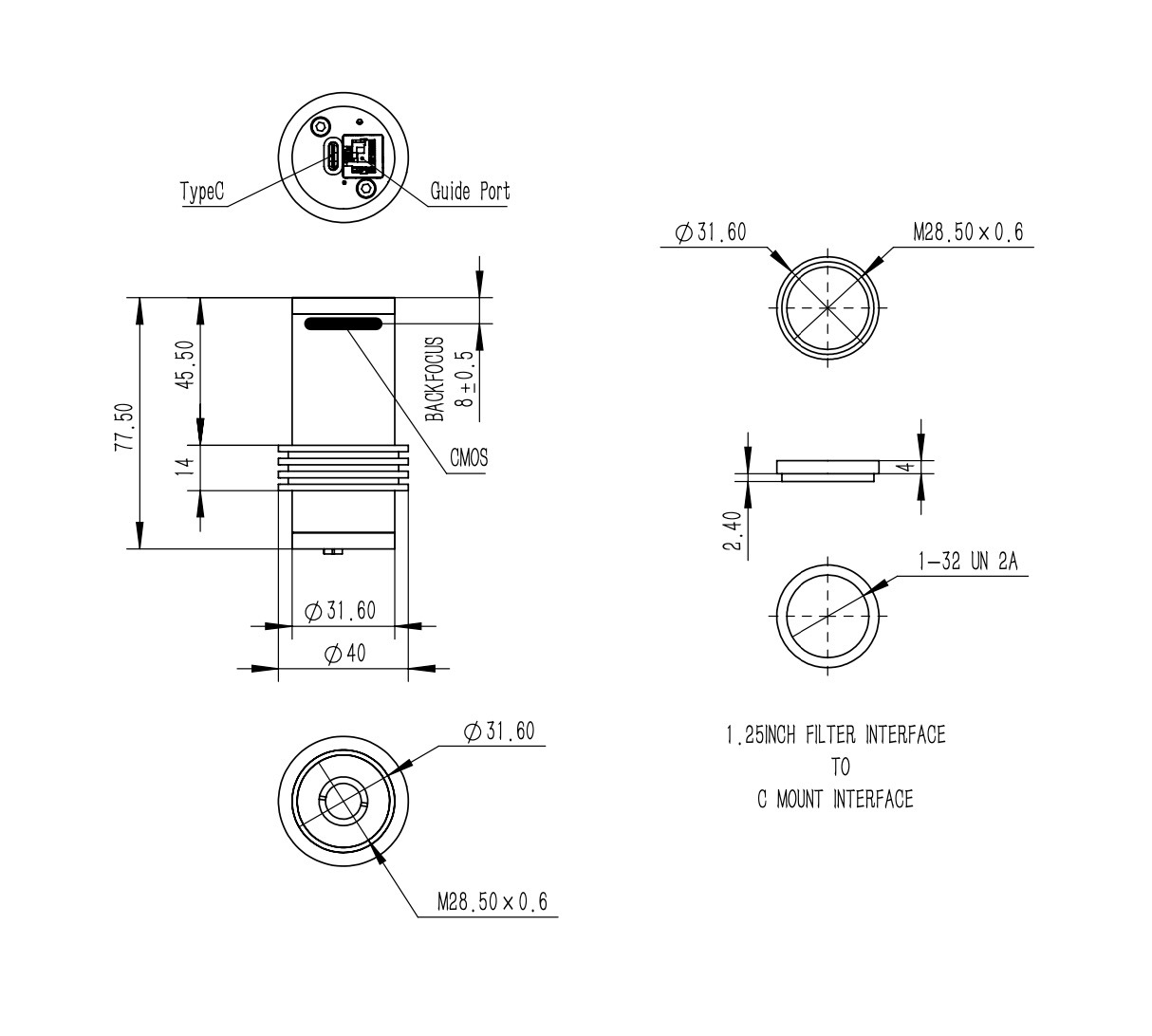

Mechanical Dimensions

Package Includes

• QHY5-III-568
• USB3.0-TYPE-C Cable
• Guiding Cable
• Filter Coated Front Window
• CS to C Mount Adapter
• 1.25-Inch to CS Mount Adapter
• Focus Lock Ring and Thumb Screw
• Driver Download Instructions Card
