QHY5-III-678C Colour + Free Shipping + Free LensPen

QHY5-III-678C Accepting Order & Shipping Now!

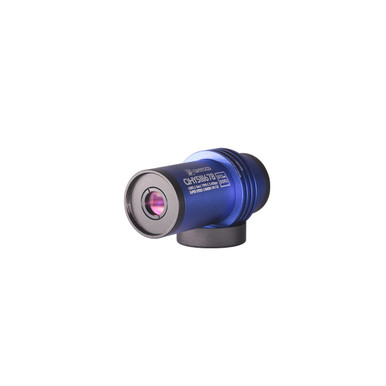

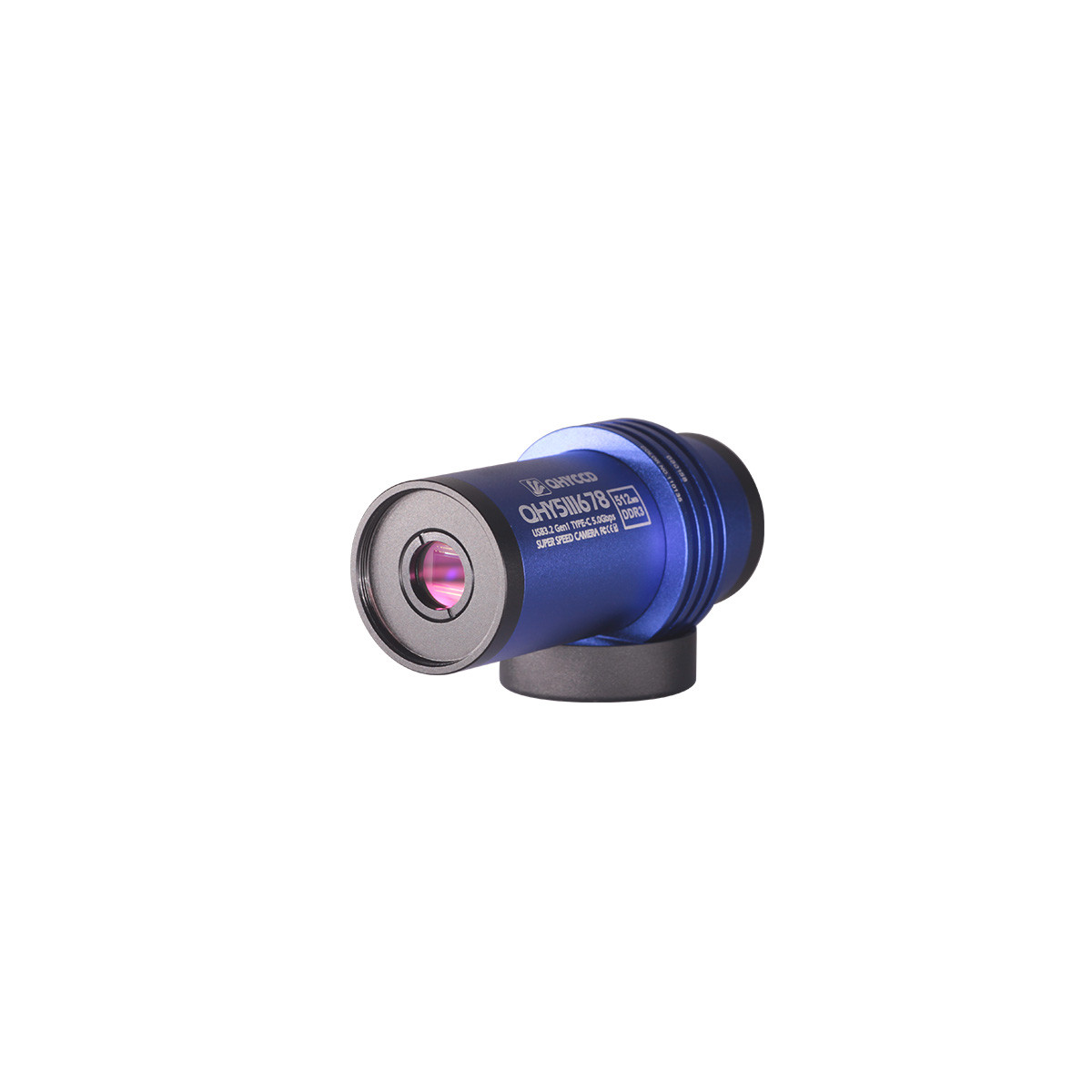

QHY5III678M/C, the upgraded version of QHY5III 178M/C, is a new planetary and guiding camera of QHY5III V2 series with excellent near-infrared high sensitivity. The product comes with an IR850 filter.

QHY5-III Series Standard Features

• QHYCCD proprietary noise reduction technology
• Amp-glow suppression technology
• Free of vertical or horizontal banding
• State of the art Sony CMOS sensor
• USB3 high speed interface
• 5 pin LEMO aerospace grade guiding port (ST-4 compatible)
• Grooved heat sink for passive cooling
• Standard 1.25" barrel design

QHY5-III is a third generation QHYCCD USB3.0 camera utilising state of the art CMOS sensor with sophisticated thermal design in a compact form. The well acclaimed 1.25" eyepiece barrel design is retained and with grooved heatsink to enhance passive cooling.

Apart from the state of the art sensor, the QHY5-III is equipped with aerospace grade guiding port, i.e. the 5 pin LEMO port which provides highly reliable connection. This is a feature only available on premium camera where manufacturers really care about its customers.

Other Performance Highlights

• 1/1.8inch
• 2.0μmx2.0μm pixel size
• Back Illuminated STARVIS 2
• 8.4 Megapixels (3856x2180)
• Max frame rate in 43FPS @ 8bit
• 12 bit ADC

Package Includes

• QHY5-III-678
• USB3.0-TYPE-C Cable
• Guiding Cable
• Filter Coated Front Window
• CS to C Mount Adapter
• 1.25-Inch to CS Mount Adapter
• IR850 Filter 12.5x0.7mm
• Focus Lock Ring and Thumb Screw
• Driver Download Instructions Card

Users' Photos

 Mechanical Dimensions

Sensor Characteristics
