Takahashi
Takahashi FC-100DL
US$2,174.72
- SKU:
- TFK10010
- Condition:
- New
- Availability:
- Sold out and discontinued. Succeeded by FC-100DZ
- Weight:
- 7.00 KGS
- Shipping:
- Calculated at Checkout
Accepting pre-order now!

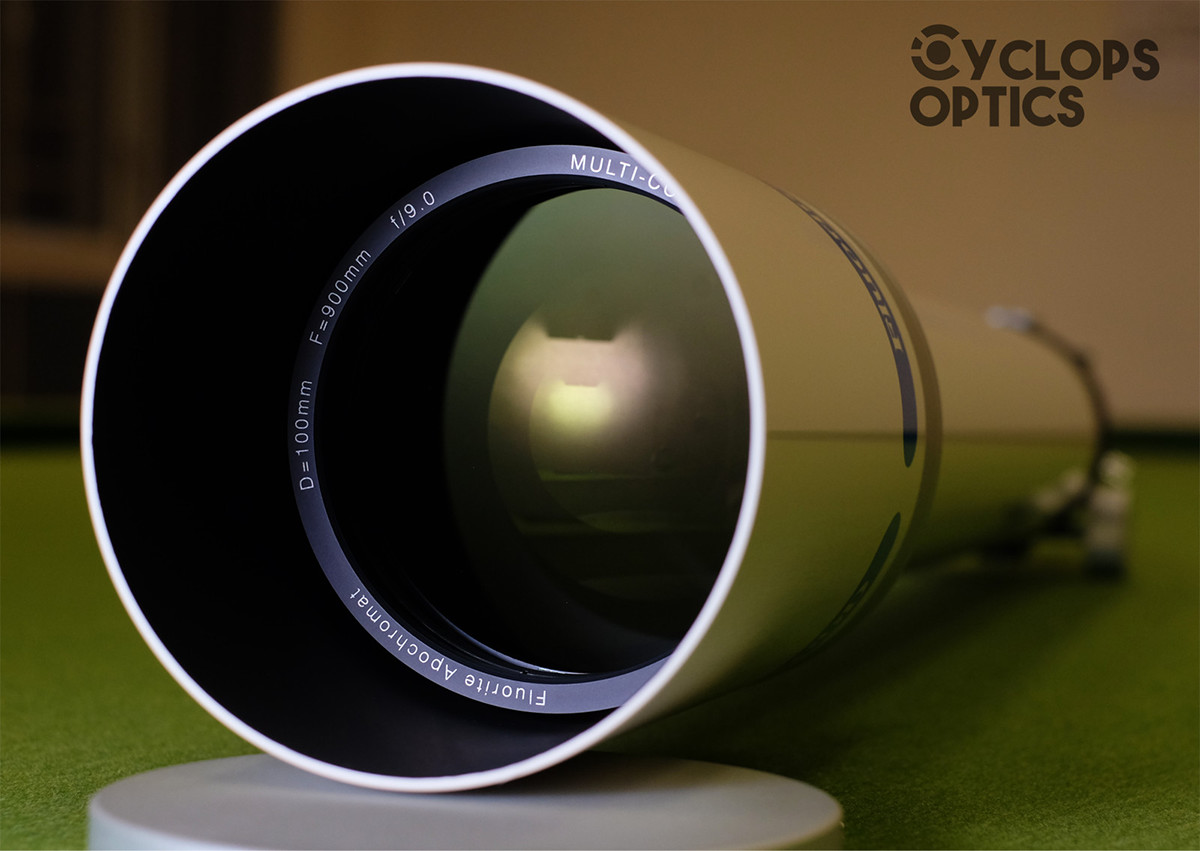

FC-100DL is a limited edition f/9 Takahashi fluorite doublet apochomat. Takahashi has only produced 100 units and most of them have been reserved. OTA only option includes
- FC-100DL tube assembly
- 50.8 mm ocular adapter (#70)
- 50.8 mm extension tube (#71L)
- 50.8 mm sleeve (#13)
- Coupling (s) (#14)
- 31.7 mm ocular adapter (#46)
* Ocular (eyepiece) (#47) not included
OTA with complete tube assembly option includes
- Everything above and,
- 6x30 finderscope (TKA00551)
- Finderscope bracket (TKA00562)
- 95mm tube holder with aux. plate (TKA21420)

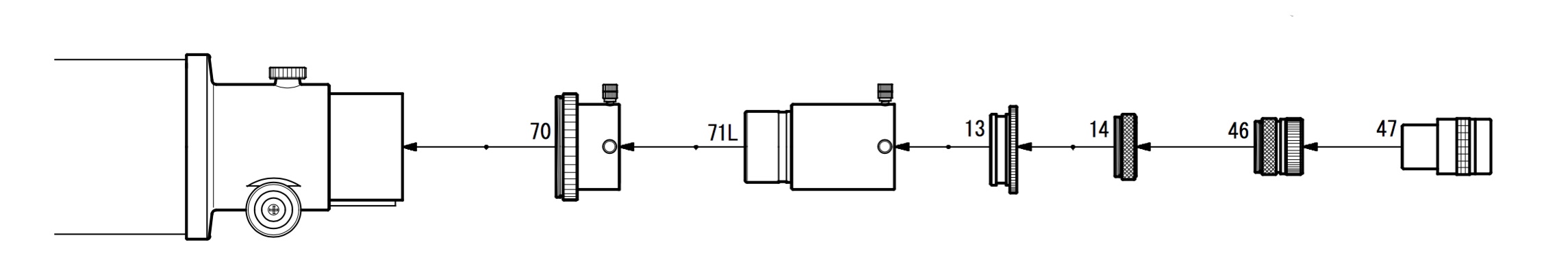

FC-100DL Default Configuration
Optional
- FC-35 Reducer 0.66x
- Wide T-mount for Canon EOS DSLR (TKA01251)
- Wide T-mount for Nikon DSLR (TKA01255)
System Chart
Specifications
| Optical system | Doublet Fluorite Apochromat |
| Aperture | 100 mm |
| Focal length | 900 mm |
| Focal ratio | f/9 |
| Resolution | 1.16 arcseconds |
| Limiting magnitude | 11.8 |
| Light gathering power | 204x |
| OTA length |
940 mm (fixed) |
| Weight | 3.8 kg |
With FC-35 Reducer 0.66x
| Focal length | 594 mm |
| Focal ratio | f/5.94 |
| Image circle |
Warranty
1 year warranty by Takahashi Japan.
We will take care of all technical problems occured during the 1 year period since the shipment date. We will cover the shipping, if required, to Takahashi Japan for repair or maintenance. Your only cost would be shipping it back to us which we will be very happy to allow you to use our heavily discounted (~30% off retail) courier account (FedEx).
Image Gallery
