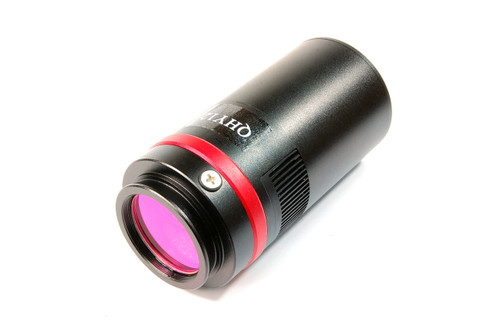

QHY12 is a 14.2 Megapixels APS-C size one-shot-colour CCD camera with -40°C thermoelectric cooling. The smaller pixel size (5.12μm) allows you to achieve a higher sampling resolution than the QHY10's 6.05μm. Similar to QHY8 series, the QHY12 also uses a compact cylindrical case which can be very advantageous for Hyperstar f/2 system.
Please click on the tab "Technical Specification" for more technical details.
QHY12's Highlights
- Sealed CCD chamber purged with argon gas (airproof and oilproof)
- Removable desiccant tube to help dry the sealed chamber
- Adjustable CCD tile and centre position
- External DC power supply to power the CCD and TEC without incurring EMI noise
- Shipped in pelican case
- ASCOM driver and EZCAP capture software provided
Includes
- QHY12 camera x1
- Center & tilt adjustment ring x1
- 1.8m Belkin USB2.0 cable x1
- DC201 power adapter x1
- 9 pin power cable x1
- Cable organizer (3D printed) x1
- Desicant tube with silica gels x1
- Electronic desicant x1
- All shipped in Pelican case
Optional
| Sensor | Sony ICX613 |
| Effective pixel count | 14.2 Megapixels |
| Pixel size | 5.12 µm x 5.12 µm |
| Peak quantum efficiency | 55% @ Green, 46% @ Red, Blue and H-alpha |
| Full well capacity | 32 ke- |
| Anti blooming gate | -100dB |
| Microlenses on chip | Yes |
| Total pixel array size | 4640[H] x 3160[V] |
| Effective pixel array size | 4610[H] x 3080[V] |
| Effective area | 24 mm x 16.4 mm (approx.) |
| Typical size | APS-C |
| Readout method | Progressive |
| Shutter | Global electronic shutter |
| Download speed | 25s / 6s (high speed) |
| Preview speed (4*4 binning) | 2s |
| Readout noise | 8-10 e- @ 0.6 MPixels/s |
| Supported binning modes | 1*1, 2*2, 4*4 |
| System gain | 0.5 e-/ADU (adjustable) |
| Analog-digital converter | 16-bit with CDS and Pre-amp |
| Power consumption | 3.6 W (0% cooling power) |
| 13 W (50% cooling power) | |
| 30 W (100% cooling power) |
Thermal specification
- 2-stage TEC -40ºC below ambient
- Airproof CCD chamber with removable silica tube socket
- Built-in active cooling fan
- Built-in optical window anti-dew heater
Interfaces
- M42 Female thread connecting to telescope
- USB 2.0
- ST4 autoguiding port
