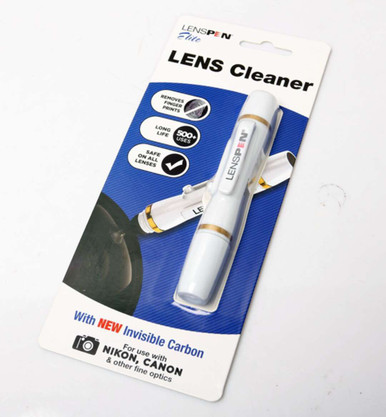

NEW Antlia ALP-T Dual Band 5nm Filter 2" (48mm) Mounted + Free Lens Pen + International Free Shipping

HK$2,980.00

NEW Antlia ALP-T Dual Band 5nm Filter 2" (48mm) Mounted + Free Lens Pen + International Free Shipping

HK$2,980.00
SKU:
Antlia ALP-T Dual-Band-5nm-Filter-2"
Shipping Weight:
0.20 KGS
Availability:
In Stock and ready to ship! Very limited stock available.
Shipping:
Calculated at checkout

Share

Product Description

The Antlia ALP-T dual band 5nm filter is a dual line-pass filter which was designed to be used primarily with one-shot color (OSC) cameras such as DSLR's or astronomical OSC cameras. It can also be used as a narrowband filter for monochrome cameras to save imaging time. The advanced multi-coatings on our ALP-T ultra dual band filter effectively isolates the red Ha and the blue-green OIII lines light from emission nebulae, with almost total suppression of optical density (OD)4.5 on unwanted wavelengths from light pollution, moonlight, and airglow. The result is that our ALP-T dual band 5nm filter creates a superior signal-to-noise ratio and better contrast in your images. The filter enables the capture of the two main emission nebulae bands at the same time, whilst suppressing unwanted light pollution. It enables you to capture cleaner data and reduces the post processing efforts to isolate faint details from the background light pollution. As Antlia ALP-T dual band 5nm filter looks golden yellow to the naked eye, we also call it the Golden filter.



Application and Performance:

Engineered specifically for use with DSLR, CMOS, and CCD color cameras

Suppression of optical density (OD)4.5 on unwanted visual wavelengths adds signal-to-noise

Extremely steep bandpass edges minimize internal reflections

Ideal flat- top and moderate bandpass reducing spectrum down shifts

Ion Gun Assisted Deposition coating technology on the double-sided polished substrate making it the most consistent and accurate light pollution suppression filter

Good performance at focal ratios faster than F3.0 with contrast increasing as focal ratioincreases

Designed to suppress artificial lighting from Bortle scale 1 to Bortle scale 8

Near IR (NIR) is blocked up to 1100nm

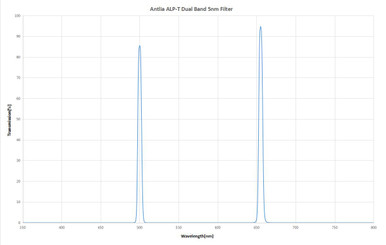

Technical Specifications:



Hydrogen-alpha

Oxygen III

FWHM

5nm

5nm

CWL (Central Wavelength)

656.3nm

500.7nm

Peak Transmission

90%

82%

Blocking

OD4.5 @ 300-1100nm

Filter Thickness

2mm+/-0.05mm





Filter Ring:

2’’ (M48*0.75)

Ultra-thin filter cell to minimize vignetting by maximize possible clear aperture

Black Anodized Finish

Laser Engraving No Fading
