Cyclops Optics

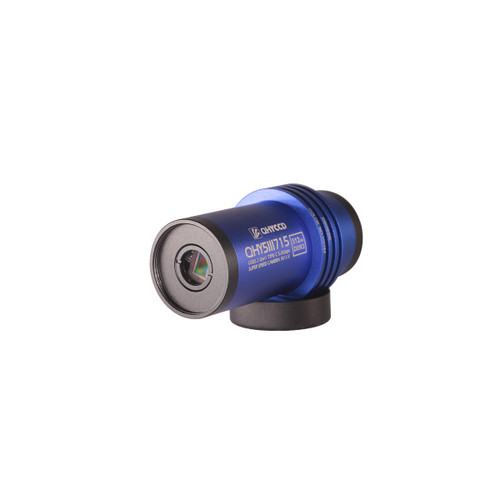

QHY5-III-715C

HK$1,680.00 HK$1,380.00
(You save HK$300.00)

QHY5-III-715C

HK$1,680.00 HK$1,380.00
(You save HK$300.00)
SKU:
QHYCCD-110164
Shipping Weight:
1.00 KGS
Availability:
Accepting Order
Shipping:
Calculated at checkout
Share

Product Description

QHY5-III-715C accepting order & shipping now!





Other Performance Highlights

  • 6.46mm diagonal (Type 1/2.8)
  • 2.9um pixel size
  • Back Illuminated STARVIS
  • 2.07MP (1920x1080)
  • Max frame rate in 1080p of 120fps
  • 10/12 bit ADC



QHY5-III Series Standard Features

  • QHYCCD proprietary noise reduction technology
  • Amp-glow suppression technology
  • Free of vertical or horizontal banding
  • State of the art Sony CMOS sensor
  • USB3 high speed interface
  • 5 pin LEMO aerospace grade guiding port (ST-4 compatible)
  • Grooved heat sink for passive cooling
  • Standard 1.25" barrel design

QHY5-III is a third generation QHYCCD USB3.0 camera utilising state of the art CMOS sensor with sophisticated thermal design in a compact form. The well acclaimed 1.25" eyepiece barrel design is retained and with grooved heatsink to enhance passive cooling.

Apart from the state of the art sensor, the QHY5-III is equipped with aerospace grade guiding port, i.e. the 5 pin LEMO port which provides highly reliable connection. This is a feature only available on premium camera where manufacturers really care about its customers.

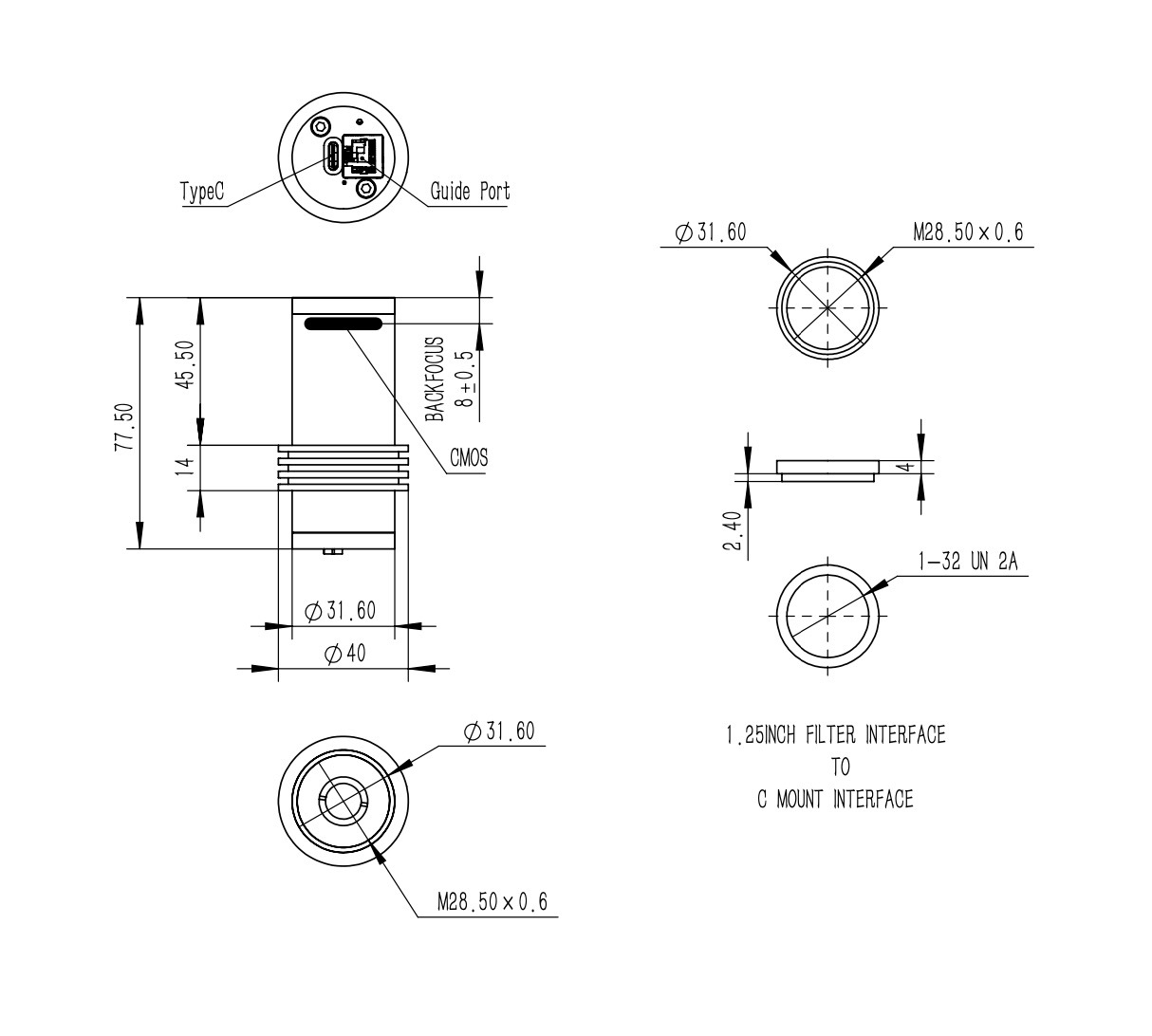

Mechanical Dimensions

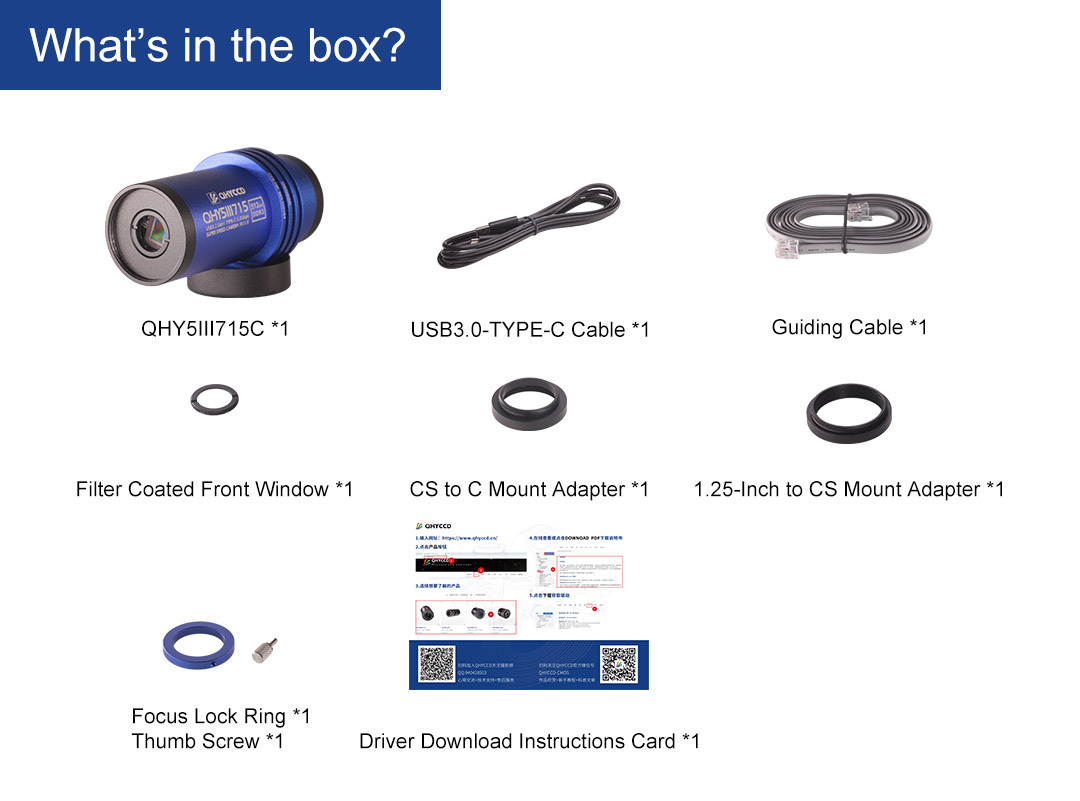

Package Includes

  • QHY5-III-715C
  • USB3.0-TYPE-C Cable
  • Guiding Cable
  • Filter Coated Front Window
  • CS to C Mount Adapter
  • 1.25-Inch to CS Mount Adapter
  • Focus Lock Ring and Thumb Screw
  • Driver Download Instructions Card


Users' Photos
